Schauer Battery Chargers

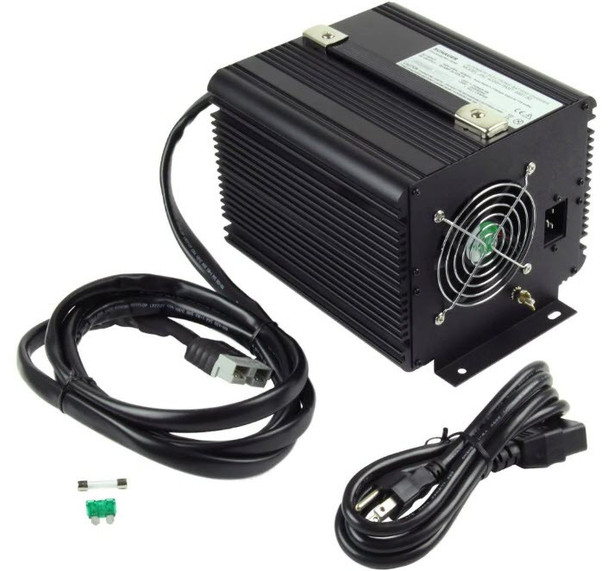

JAC4024LFP - 24 Volts 40 Amp Lithium LiFePO4 Schauer Automatic Battery Charger - Maintainer

(No reviews yet) Write a Review
SKU:
JAC4024LFP
MPN:
0600-80
Condition:
New
Availability:
In Store or Shipping. Special Order 1-2 Weeks From Order Date.
Lithium LiFePO4
  • JAC4024LFP - 24 Volts 40 Lithium LiFePO4 Amp Schauer Automatic Battery Charger - Maintainer | Battery Specialist Canada
  • JAC4024LFP - 24 Volts 40 Amp Lithium LiFePO4 Automatic Battery Charger - Maintainer | Battery Specialist Canada
  • JAC4024LFP - 24 Volts 40 Amp Lithium LiFePO4 Schauer Battery Charger - Maintainer | Battery Specialist Canada
$599.95
  • SB50 Gray to SB175 Gray Schauer Battery Charger Adapter | Battery Specialist Canada
  • SB50 Gray to SB175 Red Schauer Battery Charger Adapter | Battery Specialist Canada
  • SB50 Gray to SB50 Red Schauer Battery Charger Adapter | Battery Specialist Canada
  • Battery Clips with SB50 Gray Plug & Protection Fuse for Schauer Battery Chargers | Battery Specialist Canada
  • SB50 Gray to 3/8 " Rings Terminal - Schauer Battery Charger Adapter | Battery Specialist Canada
  • SB50 Gray to Stripped Wire Leads - Schauer Battery Charger Adapter - 202000063 | Battery Specialist Canada
Frequently bought together:

Description

The JAC4024LFP (0600-80) 24v – 40 Amp Battery Charger is a Lithium Iron Phosphate (LiFePO4) Charger.

Model:
JAC4024LFP
Dimensions (LxWxH):
243 x 186 x 163 mm
Weight:
4.5 kg

AC Input:
Input Voltage Autosensing: 115/230 VAC 50/60 Hz
Input Current Max: 13 Amps
Single Phase
Input Receptacle: IEC C20

DC Output:
Output Voltage - Nominal: 24 VDC (25.6 LiFEPO4)
Output Voltage - Flooded: 28.8 VDC
Float Voltage: 26.5 VDC
Max DC Current: 40 Amps
Battery Type: Lithium Iron Phosphate (LiFePO4)
3 Stage Charging Profile: CC/CV
Load Sensing, Minimum Voltage: 8 Volts

Features:
Cooling Fan
Reverse Polarity Protection
High Energy Efficiency (UEC, BC)
Voltage Limited
Current Limited
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Aluminum Case
Mounting Flanges
On / Off Switch
DC Output Cord 8ft w/ Anderson SB50 Grey Connector
Detachable AC Cord, 5 ft (NEMA 5-15/IEC C19)

Certifications:
Safety – CE
DOE UEC Title 20, 10 CR, Part 430
California BC Energy Efficiency Compliant

LED Lights:
Upper Power – Red: Power On
Lower Equalizer – Amber (Fan): Charging
Lower Equalizer – Green (No Fan): Full Charger / Float Mode
View AllClose

Warranty Information

All Schauer Battery Chargers Come With A 2 Year Limited Warranty.
View AllClose

Additional Information

Charger Voltage:
24 Volt
Charger Amperage:
40 Amp
Charger Plug:
SB50 Gray DC
