5500 AC Distribution Panel

Features

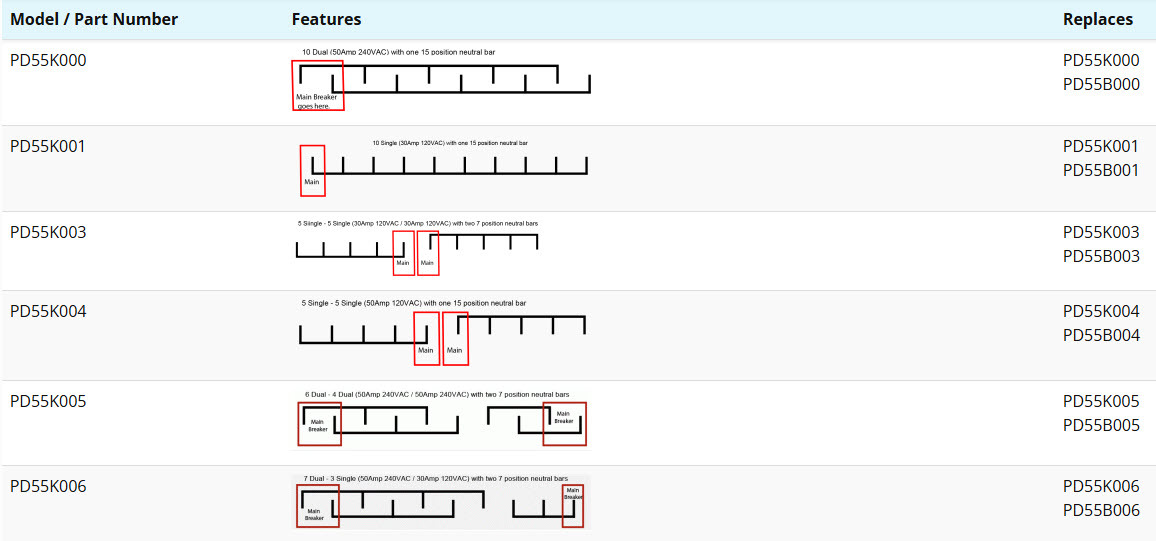

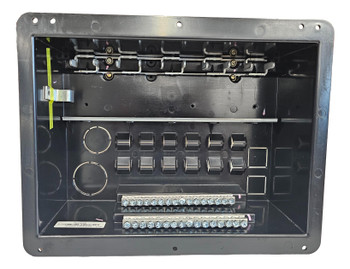

• A split 50/30 panel accepts — LEFT SIDE: dual 50 Amp main and up to 10 branch circuits — RIGHT SIDE: 30 Amp main and up to 4 branch circuits.
• A split 50/50 panel accepts — LEFT SIDE: dual 50 Amp main and up to 8 branch circuits — RIGHT SIDE: dual 50 Amp main and up to 4 branch circuits.

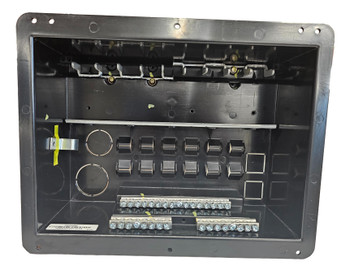

• A split 30/30 panel accepts — LEFT SIDE: 30 Amp main and up to 8 branch circuits — RIGHT SIDE: 30 Amp main and up to 8 branch circuits.
• Special order configurations available on request.
• Compatible with 6000 Series DC Power Distribution Panel.
• Press open door for easy access to circuit breakers.
• AC Panel features 12 built-in push and lock strain relief connectors.
• Attractive lightweight panel design made from black impact-resistant high temperature polymers.
• AC Panel designed with large front
• wiring compartment.

• Measurements and Weight:
  Dimensions: 11.7”W x 9.2”H x 4.1”D
  Cut-out size: 10.5”W x 7.5”H
  Weight: 2 lbs.
