Description

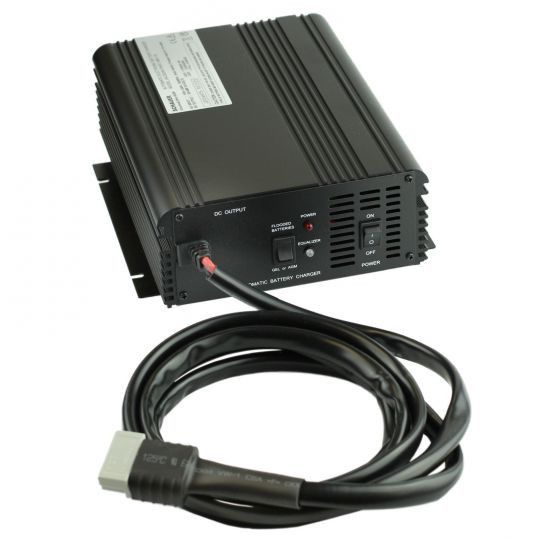

The JAC3024LFP (0600-151) 24v – 30 Amp Battery Charger is a Lithium Iron Phosphate (LiFePO4) charger.
Model:
JAC3024LFP
JAC3024LFP
Dimensions (LxWxH):
375 x 210 x 85 mm
375 x 210 x 85 mm
Weight:
4.6 kg
4.6 kg
AC Input:
Input Voltage (auto-sensing): 100/240 VAC, 50/60 Hz
Input Current Max: 12 Amps
Single Phase
Input Receptacle: IEC C14
DC Output:
Output Voltage - Nominal: 24 VDC (25.6 VDC LiFePO4)
Output Voltage - Bulk / Cyclic: 28.8 VDC
Float Voltage: 26.8 VDC
Max DC Current: 30 Amps
Battery Type: Lithium Iron Phosphate (LiFePO4)
3 Stage Charging Profile: CC/CV
Load Sensing, Minimum Voltage: 8 Volts
Features:
Cooling Fan
Reverse Polarity Protection
High Energy Efficiency (UEC, BC)
Voltage Limited
Current Limited
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Aluminum Case
Mounting Flanges
On / Off Switch
DC Output Cord 8ft w/ Anderson SB50 Grey Connector
Reverse Polarity Protection
High Energy Efficiency (UEC, BC)
Voltage Limited
Current Limited
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Aluminum Case
Mounting Flanges
On / Off Switch
DC Output Cord 8ft w/ Anderson SB50 Grey Connector
Certifications:
Safety – CE
DOE UEC Title 20, 10 CR, Part 430
California BC Energy Efficiency Compliant
DOE UEC Title 20, 10 CR, Part 430
California BC Energy Efficiency Compliant
LED Lights:
Upper Power – Red: Power On
Lower Equalizer – Amber (Fan): Charging
Lower Equalizer – Green (No Fan): Full Charge
Lower Equalizer – Amber (Fan): Charging
Lower Equalizer – Green (No Fan): Full Charge
Warranty Information
All Schauer Battery Chargers Come With A 2 Year Limited Warranty.
View AllClose
Additional Information
Charger Voltage: |
24 Volt |
Charger Amperage: |
30 Amp |
Charger Plug: |
SB50 Gray DC |
