Schauer Battery Chargers

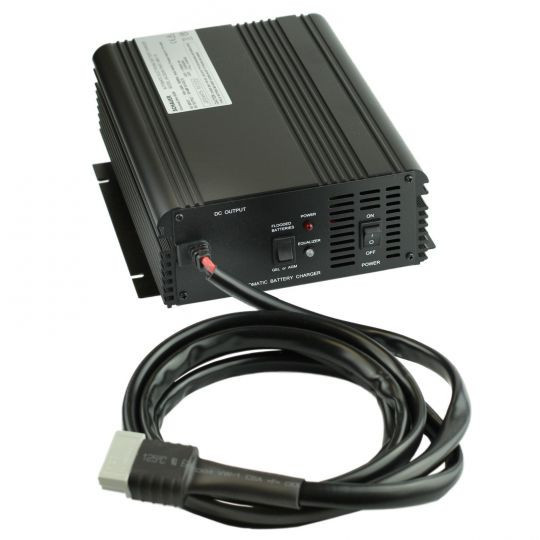

JAC2024LFP - 24 Volts 20 Amp Lithium LiFePO4 Schauer Automatic Battery Charger - Maintainer

(No reviews yet) Write a Review
SKU:
JAC2024LFP
MPN:
0600-75
Availability:
In Store or Shipping. Special Order 1-2 Weeks From Order Date.
Lithium LiFePO4
  • JAC2024LFP - 24 Volts 20 Amp Schauer Lithium Automatic Battery Charger - Maintainer | Battery Specialist Canada
  • 24 Volts 20 Amp Schauer Lithium Automatic Battery Charger - Maintainer | Battery Specialist Canada
  • JAC2024LFP - 24 Volts 20 Amp Schauer Automatic Lithium Battery Charger - Maintainer Plug Inside | Battery Specialist Canada
  • JAC2024LFP - 24 Volts 20 Amp Schauer Automatic Lithium Battery Charger - Maintainer Plug | Battery Specialist Canada
  • JAC2024LFP - 24 Volts 20 Amp Schauer Automatic Lithium Battery Charger | Battery Specialist Canada
$439.99
  • SB50 Gray to SB175 Gray Schauer Battery Charger Adapter | Battery Specialist Canada
  • SB50 Gray to SB175 Red Schauer Battery Charger Adapter | Battery Specialist Canada
  • SB50 Gray to SB50 Red Schauer Battery Charger Adapter | Battery Specialist Canada
  • Battery Clips with SB50 Gray Plug & Protection Fuse for Schauer Battery Chargers | Battery Specialist Canada
  • SB50 Gray to 3/8 " Rings Terminal - Schauer Battery Charger Adapter | Battery Specialist Canada
  • SB50 Gray to Stripped Wire Leads - Schauer Battery Charger Adapter - 202000063 | Battery Specialist Canada
Frequently bought together:

Description

The JAC2024LFP (0600-75) 24v – 20 Amp Battery Charger is a Lithium Iron Phosphate charger.

24 Volt - 20 Amp
Lithium Iron Phosphate (LiFePO4) Charger

Model:
JAC2024LFP
Dimensions (LxWxH):
410 x 207 x 85 mm
Weight:
3.3 kg

AC Input:
Input Current Max: 11 Amps
Single Phase
Input Receptacle: IEC C14

DC Output:
Output Voltage - Nominal: 24 VDC (25.6 VDC LiFePO4)
Output Voltage: 28.8 VDC
Float Voltage: 26.5 VDC
Max DC Current: 20 Amps
Battery Type: Lithium Iron Phosphate (LiFePO4)
3 Stage Charging Profile: CC/CV
Load Sensing, Minimum Voltage: 8 Volts

Features:
Cooling Fan
Reverse Polarity Protection
High Energy Efficiency (UEC, BC)
Voltage Limited
Current Limited
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Aluminum Case
Mounting Flanges
On / Off Switch
DC Output Cord 8 Ft. w/ Anderson SB50 Grey Connector
Detachable AC Cord, 5 ft (NEMA 5-15/IEC C14)

Certifications
Safety – CE
DOE UEC Title 20, 10 CR, Part 430
California BC Energy Efficiency Compliant

LED Lights:
Upper Power: Red
Lower Equalizer Amber (Fan): Charging
Lower Equalizer Green (No Fan): Full Charge

View AllClose

Warranty Information

All Schauer Battery Chargers Come With A 2 Year Limited Warranty.
View AllClose

Additional Information

Charger Voltage:
24 Volt
Charger Amperage:
20 Amp
Charger Plug:
SB50 Gray DC
